0.6m (2ft) ultra-high performance low profile dual band antenna

12.75 – 13.25G 71.0 – 86.0G

WTC06-127DOZT3A-710DOZT Dual band antenna can support two frequency bands working at the same time without interference with each other. In actual networking, according to the different connection modes with ODU/FO, it can be divided into two types: direct buckle installation and separate installation. The direct buckle installation of ODU/FO to the antenna is called direct buckle antenna, and the connection of ODU/FO to the antenna through soft waveguide is called separate antenna. According to the difference of antenna polarization, it can be divided into single polarization and dual polarization.

General Specifications

                                                                                            General Specifications

Diameter, nominal, m (ft)

0.6 (2)

Polarization

Single V or H; pre-set V (Vertical).

Antenna Color

Light Gray

Radome Color

Light Gray

Radome Material Description

HIPS

Packing

Carton

RoHS

Compliant



Electrical Specifications


Antenna Type

WTC06-127DOZT3A-710DOZT

Frequency Band (GHz)

12.75 – 13.25

71.0 – 86.0

Waveguide Interface

153IEC-R120

153IEC-R740*

Gain (dBi), Low

34.8

49.5

Gain (dBi), Mid

35.0

50.0

Gain (dBi), High

35.2

50.5

3 dB BW (°)

2.4

0.4

Return Loss

14.0

14.0

VSWR

1.5

1.5

F/B Ratio (dB)

60

67

XPD（dB）

30

30

ETSI Standard

R1, C3

R7, C3



Mechanical Specifications

                                                  Mechanical Specifications

Wind Velocity Operational, km/h

200

Wind Velocity Survival Rating, km/h

250

Coarse Azimuth, Degree

360

Fine Azimuth Adjustment, Degree

±15

Preset Elevation, Degree

±10

Fine Elevation Adjustment, Degree

±15

Mounting Pipe Diameter, mm

f76 ~ f114

Feeder Watertightness

Watertight

Operation Pressurization, KPa

50

Operation Temperature, °C

-45 ~ +60

Storage Temperature, °C

-55 ~ +70

Ice Load, mm

25

Strengthening Rod

1

Adjustable Rod

NA

Net Weight, kg

18.75±1

Gross Weight，Packed Antenna, kg

23.5±2

Packing Length, mm

750

Packing Width, mm

750

Packing Height, mm

580

Packing Volume, m³

0.45

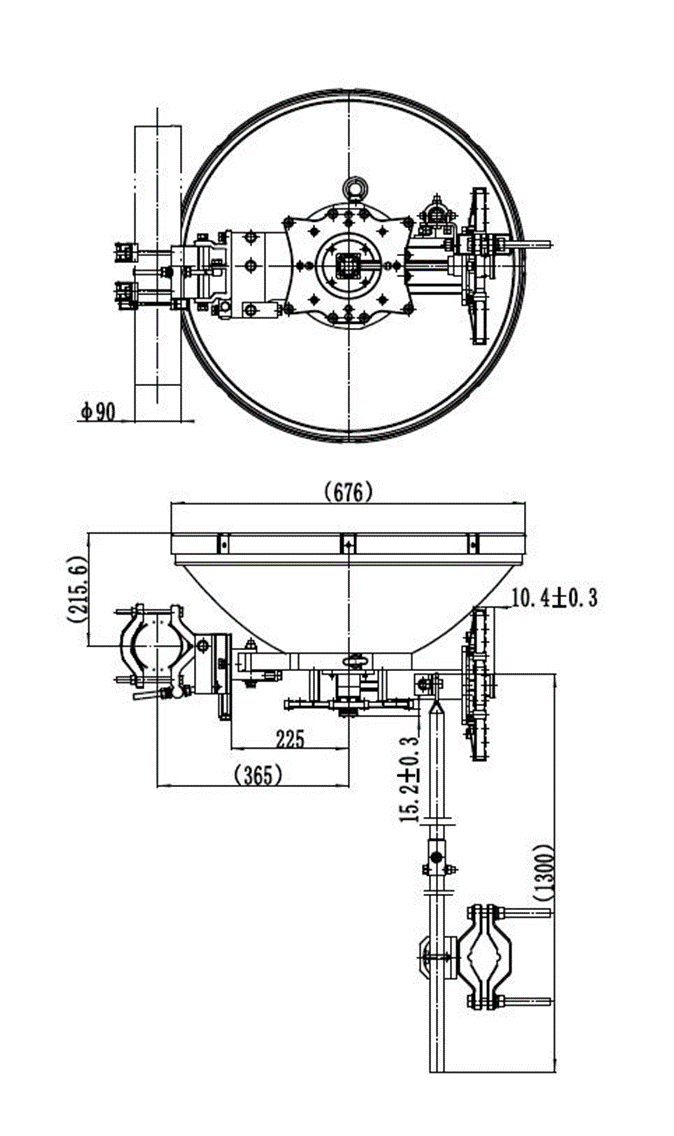

Outline Dimensions

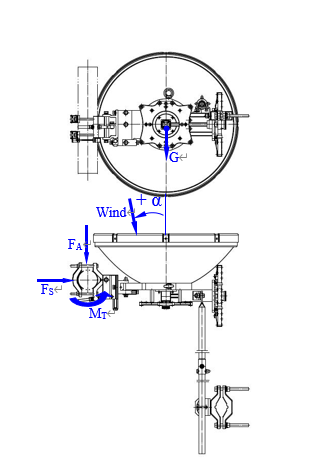

Wind Forces

The axial, side and twisting moment forces stated are maximum loads applied to the tower by the antenna at a survival wind speed of 250 km/h. They are, in every case, the result of wind from the most critical direction for each parameter. The individual maximums may not occur simultaneously. All forces are referenced to the antenna mounting pipe.


Axial Force (FA), N

1370

Side Force (FS), N

670

Twisting Moment (MT), N•m

530

Angle α for MT Max, Degree

-10


Radiation Pattern Envelope
