Dual-port Polarization Combiner
MOC036WZT3A-D
MOC036WZT3A-D
Polarization Combiner a passive device used to realize the join/branch function of microwave signals. The fundamental principle of the combiner is a waveguide directional coupler. The coupler is usually equipped with a bracket for a direct connection with the antenna and the ODU. The microwave coupler presents to the outside world as a 5-port device with one common ports and four branch ports.
Electrical Specifications
Electrical Specifications
Frequency Range GHz（Frequency band G） | 5.925~7.125HGz（6G） |
V&H Insertion Loss，Max dB | 3.8 |
Short-circuit isolation（Cross polariztion），MAX，dB | 40 |
Matching isolation（Cross polariztion）MID，dB | 45 |
Matching isolation（Copolarization），MID，dB | 25 |
Return Loss,dB | 17.7 |
Intermodulation | -112dBm@2×32dBm |
Mechanical Specifications
Mechanical Specifications
Waveguide Watertightness | Watertight |
Operation Pressurization ,Kpa | 50 |
Operation Temperature,℃ | -45~+60 |
Storage Temperature，℃ | -55~+70 |
Net Weight, kg | 8±1Kg |
Gross Weight, Packed Antenna, kg | 10±1Kg |
Packing (Length×Width ×Height )，mm | 480×410×260 |
Packing Volume m³ | 0.05 |

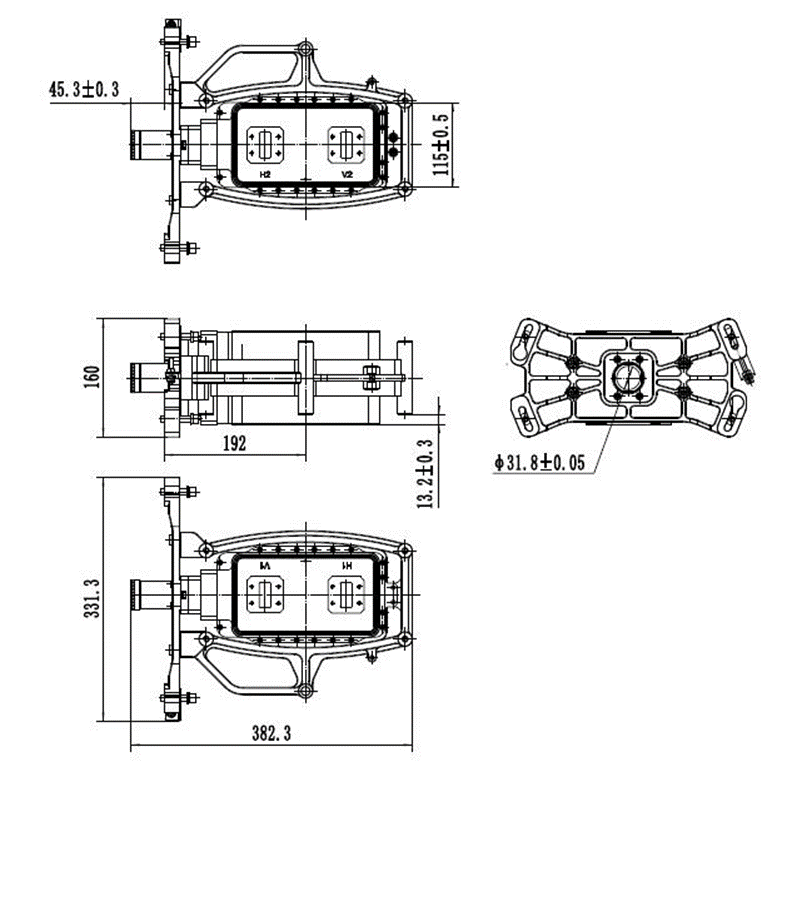

Outline Dimensions
